Ceramed

Identification, Recovery and Improvement of Ancient Mediterranean Ceramic Manufacturing Technologies for the Reproduction of Ceramic Artifacts of Archaeological Value

A Project supported by the European Commission under contract number ICA3-CT-2002-10018

In this project several partners from the Mediterranean Region studied some of the finer ancient ceramic products. The staff and consultants from CulTech in Jordan studied some of the finer specimens of Nabataean painted ceramics excavated from Petra Jordan. Several analytical techniques were used to identify the material and paints on original samples of museum objects as well as sherds. The results confirmed that the origin of the clays used in the past came from Ain at-Tinneh a clay source that lies near the fountain by the same name. This facilitated the processing and preparation of the clays for turning. FTIR, SEM, polarized microscopy and XRF and several other techniques revealed that the analysis of recently fired samples of the clay matches with the characteristics of the ancient genuine objects. X-Ray tomaography revealed the special techniques utilized and the fact that wheel turning was used rather than any other previously suggested alternative production techniques. Several sources were used to mine clays and only this source as well as another nearby one could allow the production of very thin (2-3 mm) ceramic samples. It was also found that the low thickness be obtained by shaving extra thickness from the previously prepared products before firing. Slow drying of the samples was also necessary before painting and final firing. In Nabataean times reducing conditions were used to fire at around 800C as was confirmed by our results. Oxidizing conditions however were used to produce the same quality replicas. Cooperation with the National Hellenic Research Foundation and Thetis ceramic workshop (both in Athens) helped us in confirming these results.

The paints which range in colour from orange to deep red to greyish black were all reproduced successfully from the natural sandstones of Petra. It was found that the darker colours contained manganese in addition to the iron present in all pigments. Manganese could not be found in Petra and may have come from the nearby Finan area which has the famous copper mines of antiquity. Direct addition of manganese as a chemical helped us produce the darker paints.

The outcome of the project is that women at the already existing Taybeh Girls workshop were retrained to produce finer replicas of the ancient pieces thus enhancing their business opportunities which were suffering from low sales. High school students were invited to watch the production process and to attempt to create their own objects.















Read more:

• Production Technology
• Full Project Brochure
• Nabataean Painted Fine Ware
• Analysis of Nabataean Painted Fine Ware

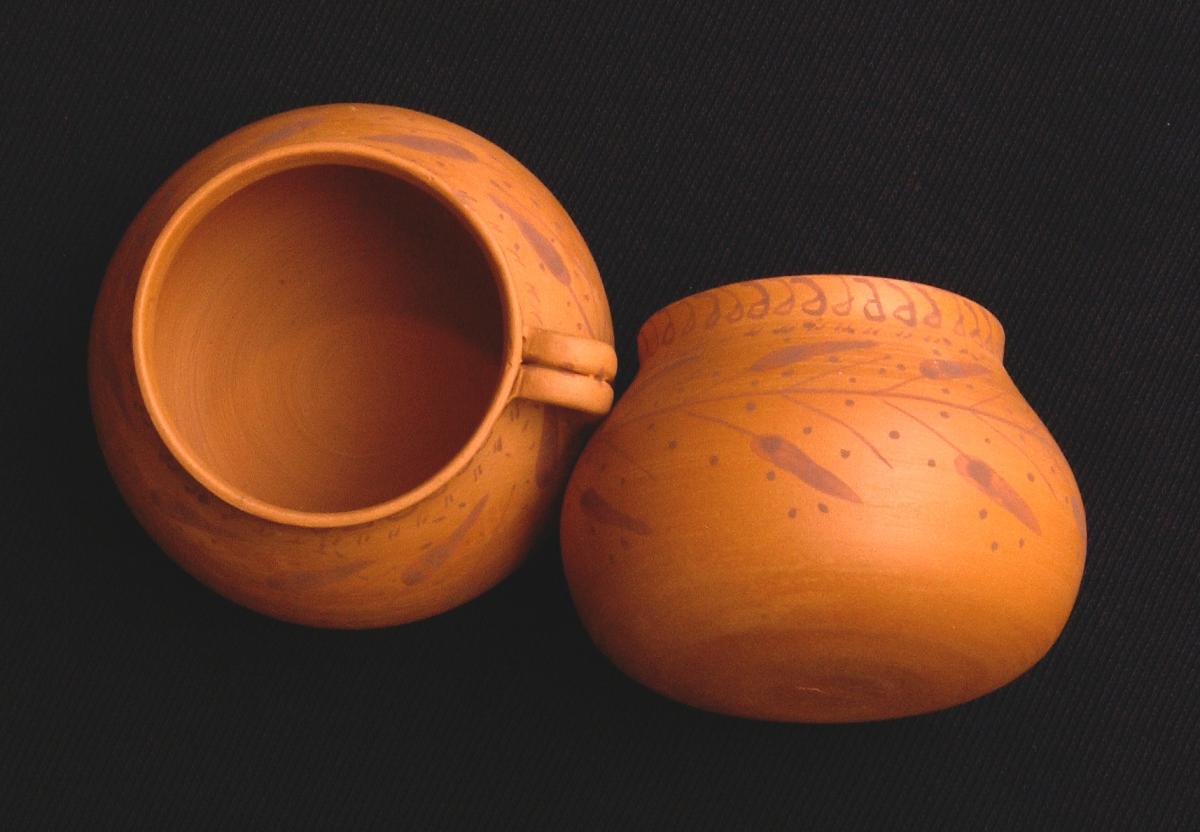

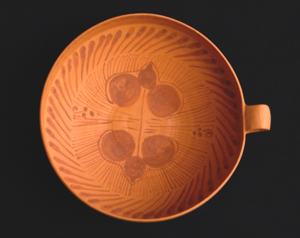

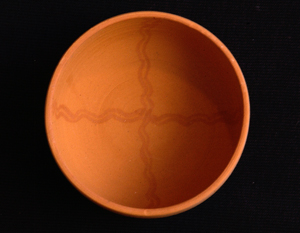

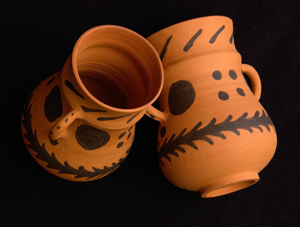

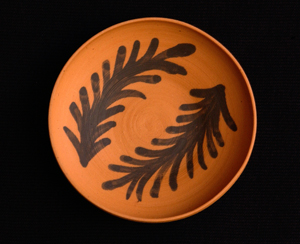

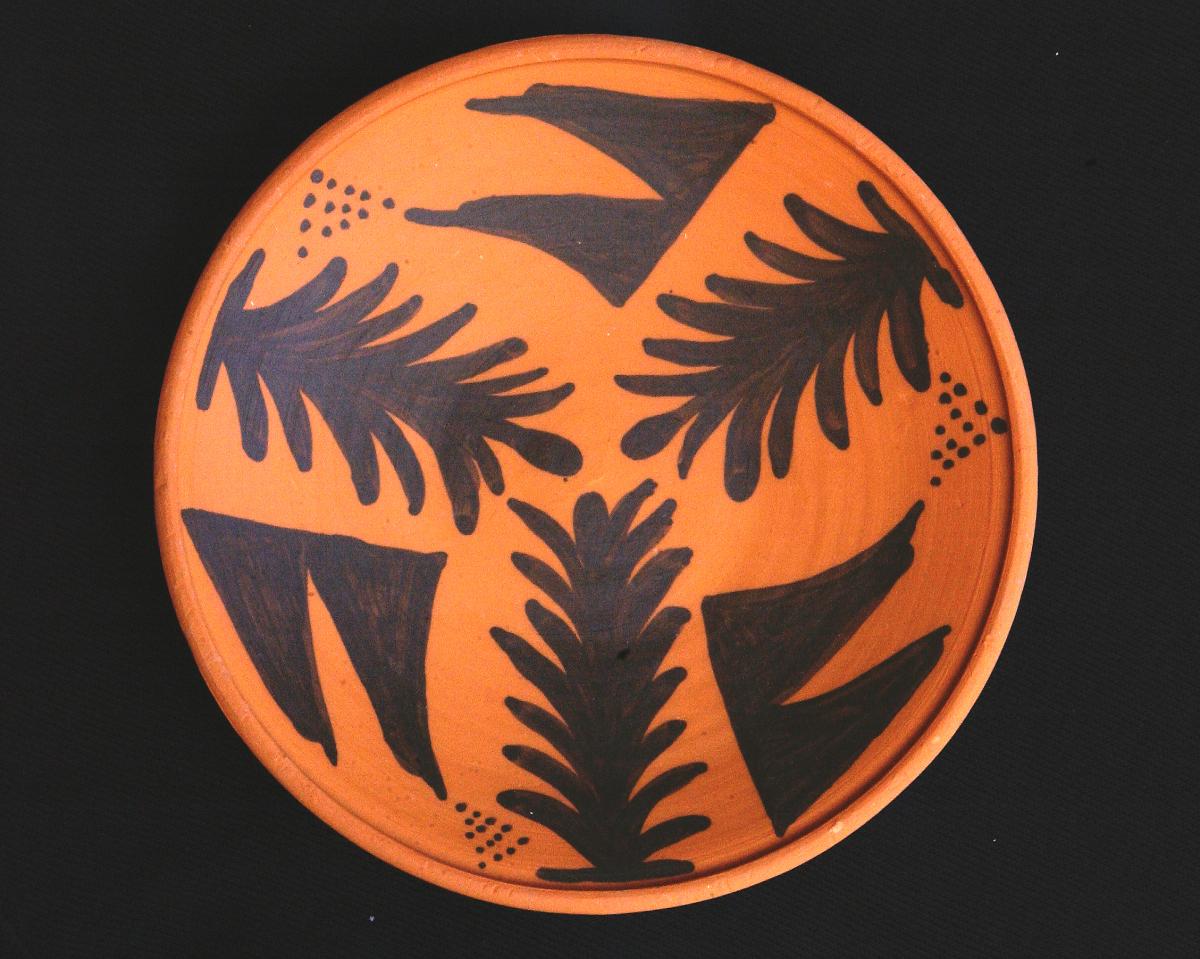

• Catalogue of some of the pieces created in the project

Jordanian Team:

• Project Manager: Prof. Talal Akasheh: CulTech
• Dr. Khairieh Amr: Jordan Museum
• Dr. Bilal Khrisat: Queen Rania Institute of Tourism and Heritage
• Maram Naes
• Rawan Sarayrah

Consultants and collaborators:

• Dr. Stratos Kamitsos: Ceramed Project Manager, national Hellenic Research Foundation, Athens
• Dr. Elena Aloupi, Thetis Athens
• Prof. Giovanni Gigante, Physics Department, University of Rome La Sapienza
• Dr. Daniela Ferro, Chemistry Department, University of Rome la Sapienza
